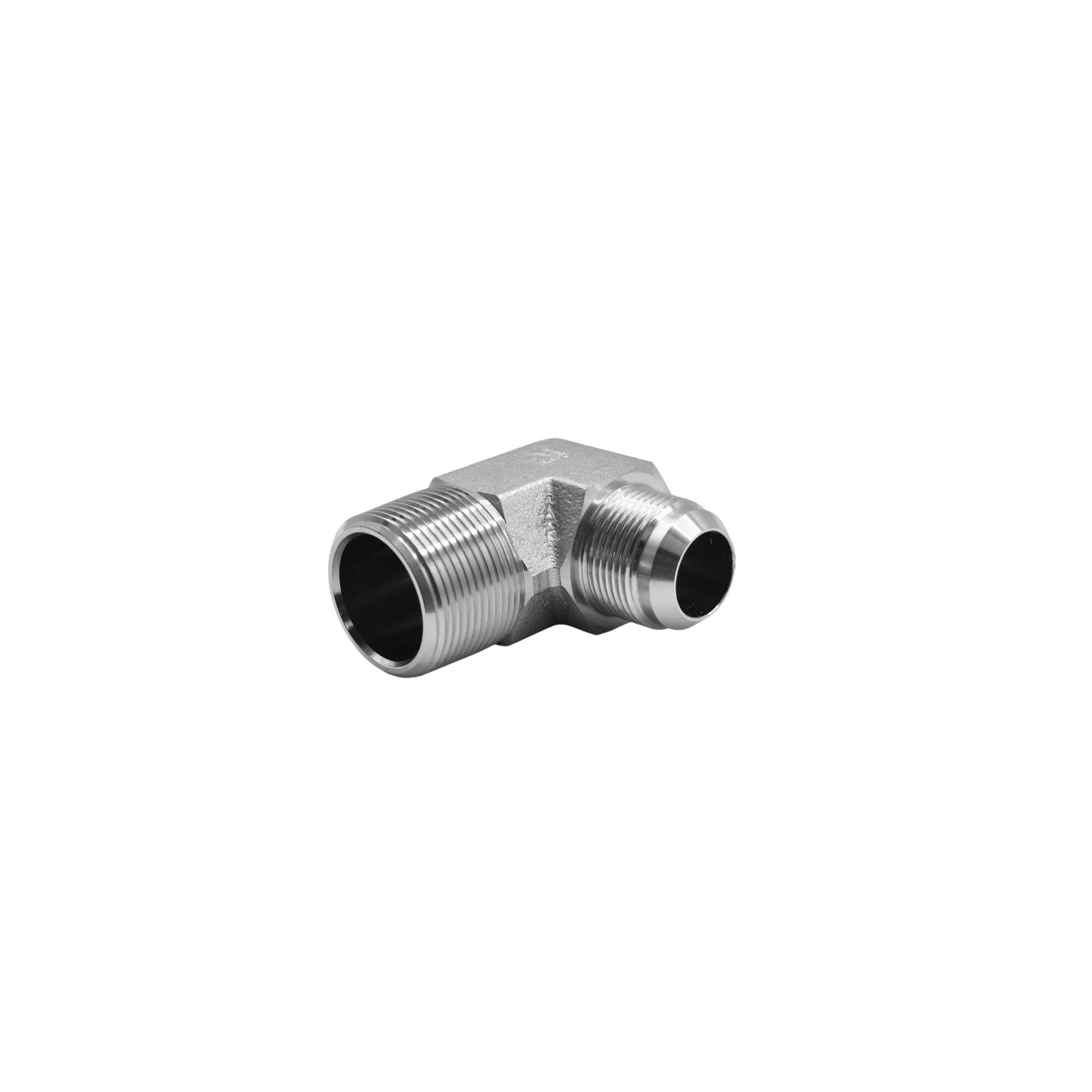

Hydraulics | 16MJ-20MP 90deg Elb Forg | 2501-16-20-FG—
$38.09
The Story
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1-1/4-11-1/2 |
| THREAD B2 DRILL IN | 1.250 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.625 |
| OVERALL LENGTH L IN | 2.380 |
| CENTERLINE LENGTH M IN | 2.010 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.2875 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 14.643 |
